1. Introduction to Pallet Revive

A runtime module (pallet) in the Polkadot SDK that provides a highly performant execution environment for smart contracts , supported dual VM PolkaVM and REVM

1.1 Key Concept

Most EVM chains (like Ethereum or EVM-compatible Chain ) run an EVM Emulator inside their node software. pallet-revive takes a different approach by supporting dual VM :

The Input: It accepts standard Ethereum transactions and Solidity code.
The Execution: It compiles Solidity code into RISC-V instructions (via Yul → LLVM → RISC-V) or EVM Bytecode
The Engine: It executes this code on PolkaVM or EVM

1.2 Revive’s Core Component

Component	Function
pallet-revive	The on-chain runtime module. It stores contract code (RISC-V blobs or EVM Code), manages storage, and executes the logic. It exposes the eth_transact extrinsic.
eth-rpc	A sidecar service (separate binary) that translates standard Ethereum JSON-RPC calls (like eth_sendRawTransaction) into Polkadot-native extrinsics.
Execution Layer	The underlying execution engine: • PolkaVM is a register-based VM (RISC-V), allowing for JIT compilation and near-native speeds. • EVM is a stack-based VM , EVM-compatible like Ethereum, Base,…
Compiler	Two types of compilers: • Resolc: A modified Solidity compiler that takes Solidity source code and outputs PolkaVM-compatible RISC-V bytecode • Solc: EVM bytecode.

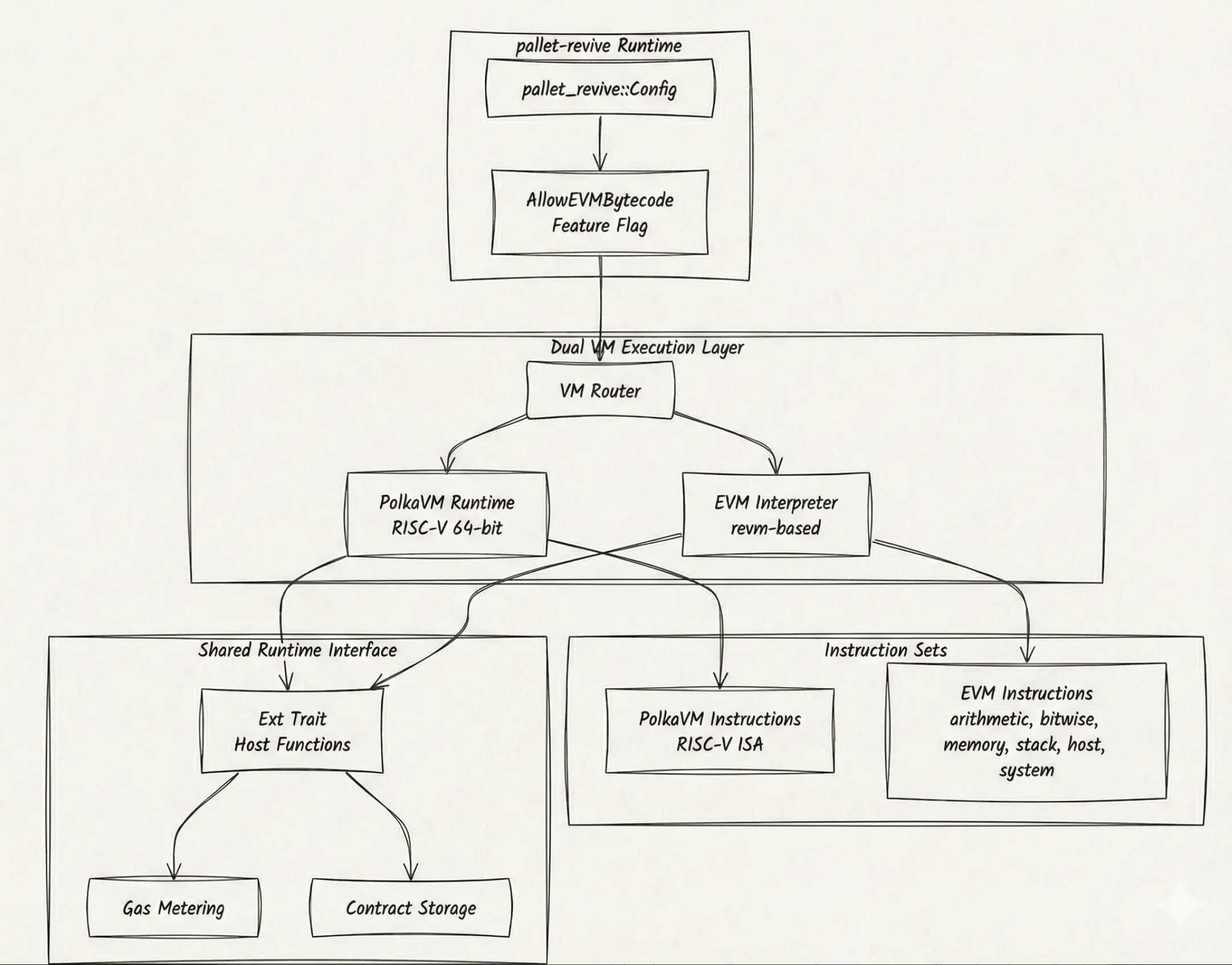

1.3 Architecture Overview

As you can see, Pallet Revive supports a Dual VM setup. While both VMs share the same Runtime Interface and ETH RPC, they differ at the instruction level: the code is compiled into different instruction sets corresponding to either PolkaVM or EVM So, how do you configure the VM? It's simple: you just need to toggle AllowEVMBytecode in Pallet Revive’s Runtime Config :

Enabled (true): Compatibility Mode. The system accepts legacy EVM bytecode, facilitating easy migration for existing Ethereum dApps.
Disabled (false): Native Mode. The system restricts execution to PolkaVM, optimizing for maximum performance and efficiency.

2. ETH Transaction Lifecycle on Polkadot Hub

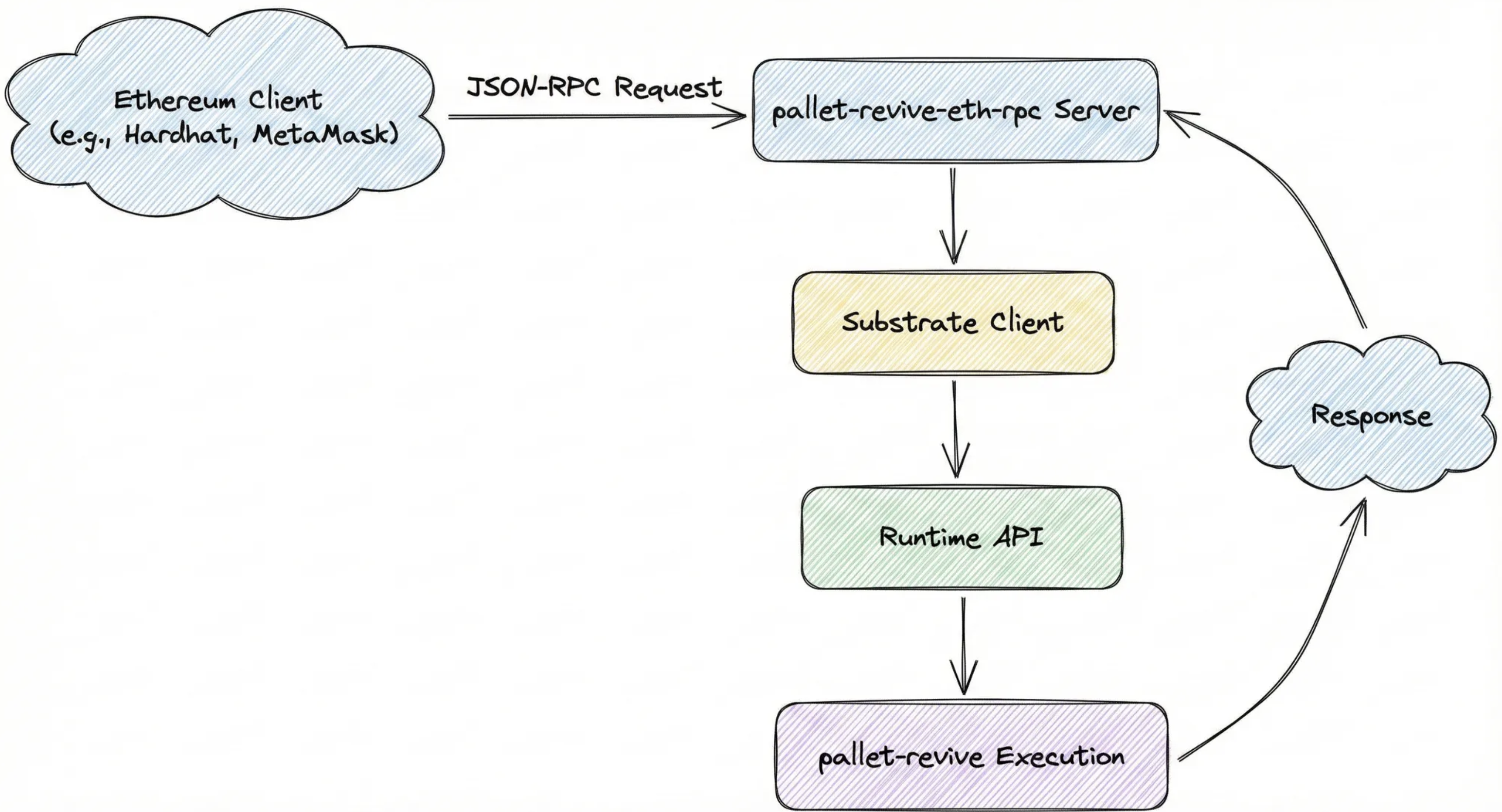

2.1 Understand Revive ETH RPC

The pallet-revive-eth-rpc is an Ethereum-compatible JSON-RPC server that provides Ethereum API endpoints for interacting with smart contracts deployed through pallet-revive on Asset Hub

Key Features:

The server acts as a translation layer between Ethereum JSON-RPC and Polkadot's runtime APIs
It supports both EVM and PolkaVM contract execution through pallet-revive

Additional Knowledges

Substrate Client: It receives the raw EVM transaction from Revive’s ETH RPC, validates transactions , and gossips it to other nodes
Runtime API: Client invokes specific API traits (ReviveApi) to pass the EVM transaction data into the Runtime for processing
Pallet-Revive Execution : it is the execution layer, where the actual state change happens

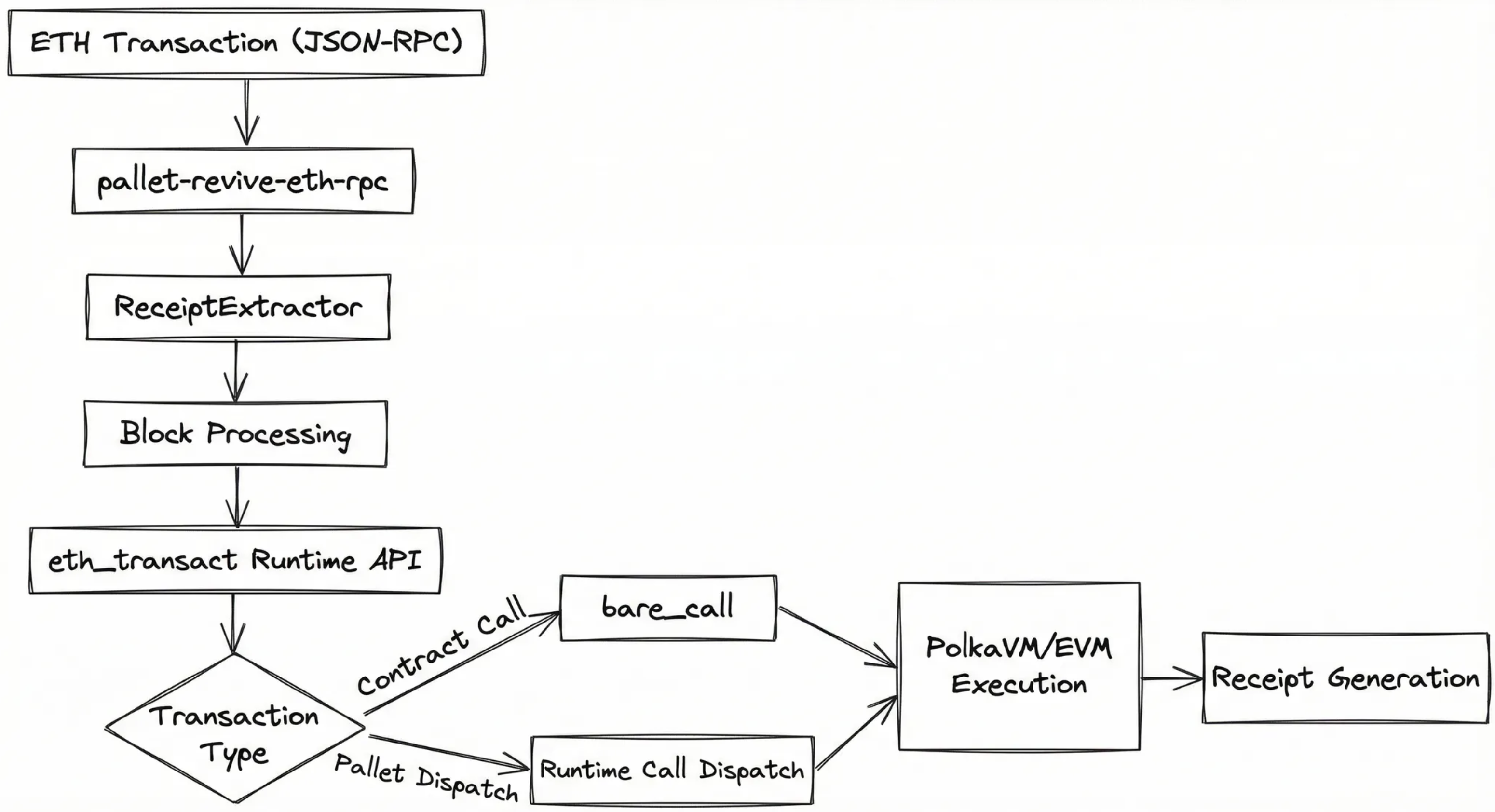

2.2 ETH Transaction Lifecycle

Having understood the roles of the Revive ETH RPC and Substrate’s Client Relationship, let's break down the EVM transaction lifecycle step by step:

Transaction Submission: The transaction originates from an Ethereum client as a raw RLP-encoded transaction sent via eth_sendRawTransaction . The RPC server receives this and submits it through the client's submit method
Transaction Conversion: The raw transaction is converted to a checked extrinsic through EthExtra::try_into_checked_extrinsic . This process:

Decodes the RLP transaction
Recovers the signer address
Validates transaction type (rejects EIP-7702 and EIP-4844)

Block Processing: Once included in a block, the ReceiptExtractor processes the extrinsic to extract Ethereum transaction data
Runtime Execution: The transaction executes through the ReviveApi::eth_transact runtime API
Execution Routing:

5.1. Runtime Call Path (to == RUNTIME_PALLETS_ADDR)
When you send a transaction to this special address, the input data is decoded as a Substrate runtime call
It directly executes pallet functions like balances.transfer, staking.bond, etc.
This lets Ethereum wallets interact with native Substrate features
Link PR: https://github.com/paritytech/polkadot-sdk/pull/10159
5.2. Contract Call Path (any other address)
Normal smart contract execution through bare_call
Supports both EVM and PolkaVM bytecode
Standard Ethereum contract interaction

Receipt Generation: After execution, a receipt is generated with all transaction details and stored in the ReceiptProvider
Revive ETH RPC get response from Execution, then eth_getTransactionReciept → return to Client

3. Conclusions

The ETH transaction lifecycle on Polkadot Asset Hub is EVM-compatible, but Substrate-powered The four main differentiators to remember are:

Mapping & Deposit: Required only when bridging Substrate native tokens to the EVM environment (optional if already funded)
Format: ETH transactions are wrapped into Substrate extrinsics.
Fees: Costs are calculated using Substrate's Weight/Gas Meter.
Decimals: The protocol manages the precision shift from (ETH) to (Native)

4. Resources

Revive Compiler aka Resolc : https://github.com/paritytech/revive
PolkaVM: https://github.com/paritytech/polkavm
Pallet Revive: https://github.com/paritytech/polkadot-sdk/tree/master/substrate/frame/revive
